    LEM LTC 1000-S Closed-Loop Hall Effect Current Transducer



    LEM LTC 1000-S Product Overview

    The LTC 1000-S is a closed-loop Hall effect current transducer from LEM's LTC series, designed for electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. It is specifically optimized for traction applications including railway propulsion and braking choppers, traction converters, and auxiliary converters.

    The sensor features a compact modular design with a 27.5mm aperture for the primary conductor crossing. Secondary connections support dual fastening modes: either 4×M5 threaded studs or 4×Faston (6.3×0.8mm) tabs. Panel mounting is achieved via 4 slots (Ø5.5mm) with M5 screws.

    This model is rated for 1000A nominal current with a measuring range of ±2100A (2.1× overload capability), outputting a 250mA instantaneous current signal with 0.6% accuracy and ±0.1% linearity. It operates on a ±15V to ±24V bipolar supply, with a DC~100kHz bandwidth and a <1µs response time.

    The sensor features a 12kV RMS insulation test voltage (between primary and secondary), ensuring high-voltage safety in demanding traction environments. It operates over a temperature range of -40°C to +85°C and is compliant with EN 50155 railway standards.

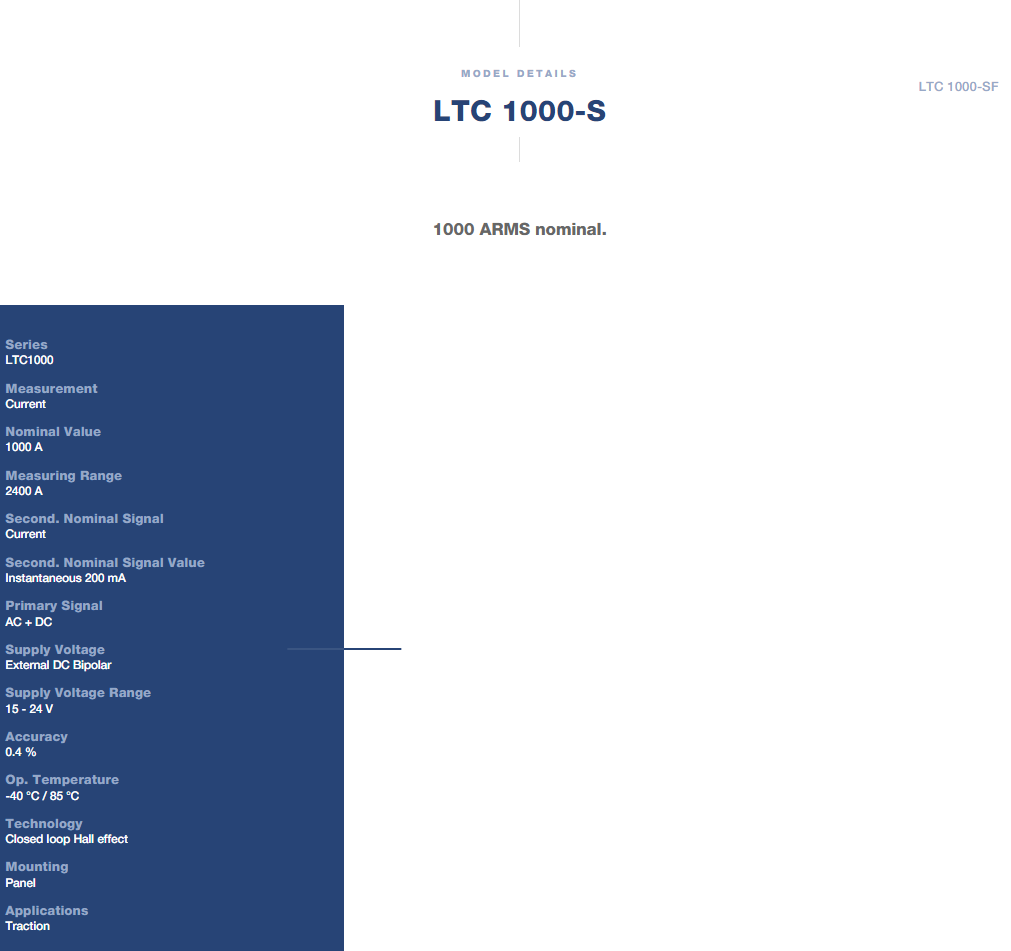

    LEM LTC 1000-S Key Technical Specifications

    Parameter

    Specification

    Nominal Current (IPN)

    1000 A

    Measuring Range (IPM)

    ±2100 A

    Output Signal (ISN)

    250 mA instantaneous current

    Conversion Ratio (KN)

    1:4000

    Technology

    Closed-loop Hall Effect

    Accuracy (XG)

    0.6 %

    Linearity (EL)

    ±0.1 %

    Supply Voltage (VC)

    ±15V to ±24V DC bipolar

    Frequency Bandwidth

    DC ~ 100 kHz

    Response Time (tr)

    < 1 µs

    Operating Temperature (TA)

    -40°C to +85°C

    Insulation Test Voltage (Vd)

    12 kV RMS / 50Hz / 1 minute

    Aperture

    27.5 mm



    LEM LTC 1000-S Core Advantages

    Closed-Loop Hall Technology with Active Compensation: Delivers 0.6% accuracy and ±0.1% linearity across the full measuring range, eliminating core saturation errors found in open-loop sensors.

    ±2100A Wide Measuring Range with 2.1× Overload Capability: The 1000A nominal sensor can measure up to ±2100A peak, providing ample safety margin for traction system transients and fault conditions.

    12kV Ultra-High Insulation Withstand Voltage: Provides 12kV RMS insulation test voltage, ensuring superior safety in demanding railway traction environments.

    <1µs Fast Response + 100kHz Bandwidth: Captures fast IGBT switching transients and high-frequency current components for protection and control applications.

    Traction-Grade Design with EN 50155 Compliance: Designed for railway propulsion converters, braking choppers, and auxiliary converters with -40°C to +85°C operating range.

    Dual Secondary Connection Modes: Supports both M5 threaded studs (recommended torque 2.2Nm) and Faston 6.3×0.8mm tabs for flexible installation options.

    High Immunity to External Interference: Built-in shield as standard and closed-loop compensation design provide excellent rejection of external magnetic fields.

    Low Temperature Drift: Excellent offset and gain stability over the wide -40°C to +85°C operating range.

    UL 94-V0 Flame Retardant Case: Certified safety housing for demanding industrial and railway environments.

    Active Part Status with Full Manufacturer Support: Currently in production with full LEM support.



    LEM LTC 1000-S Target Applications

    The LTC series is specifically designed for traction applications:Railway Traction Systems: Traction converters, auxiliary converters

    Propulsion and Braking Choppers

    Single-phase or three-phase inverters

    Battery chargers

    AC Variable Speed Drives and Servo Motor Drives

    Industrial Automation and Power Supplies



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Tierra
    Apr 27, 2026
    Good quality and good service.
    Foster
    Oct 29, 2025
    good partner and supplier
    Flavio
    Sep 04, 2025
    Trustworthy, Recommend to All !
    Yale
    Mar 03, 2025
    Easy transaction with seller, quick reply to queries.
    Ryanna
    Mar 18, 2024
    One of the better companies to work with.
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
