LTC 1000-SF/SP33 , LTC1000-SF/SP33

HOT OFFER// Authorized Distributor
  • MacroQuest Part#LTC 1000-SF/SP33
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $282.28 - $386.69
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $386.69
    10-99 Pieces $320.18
    >=100 Pieces $282.28
    Quantity:
    In Stock
    $282.28
    (0 In Stock)
    Available
    $282.28
    LT: 6-8 weeks
    (1482 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

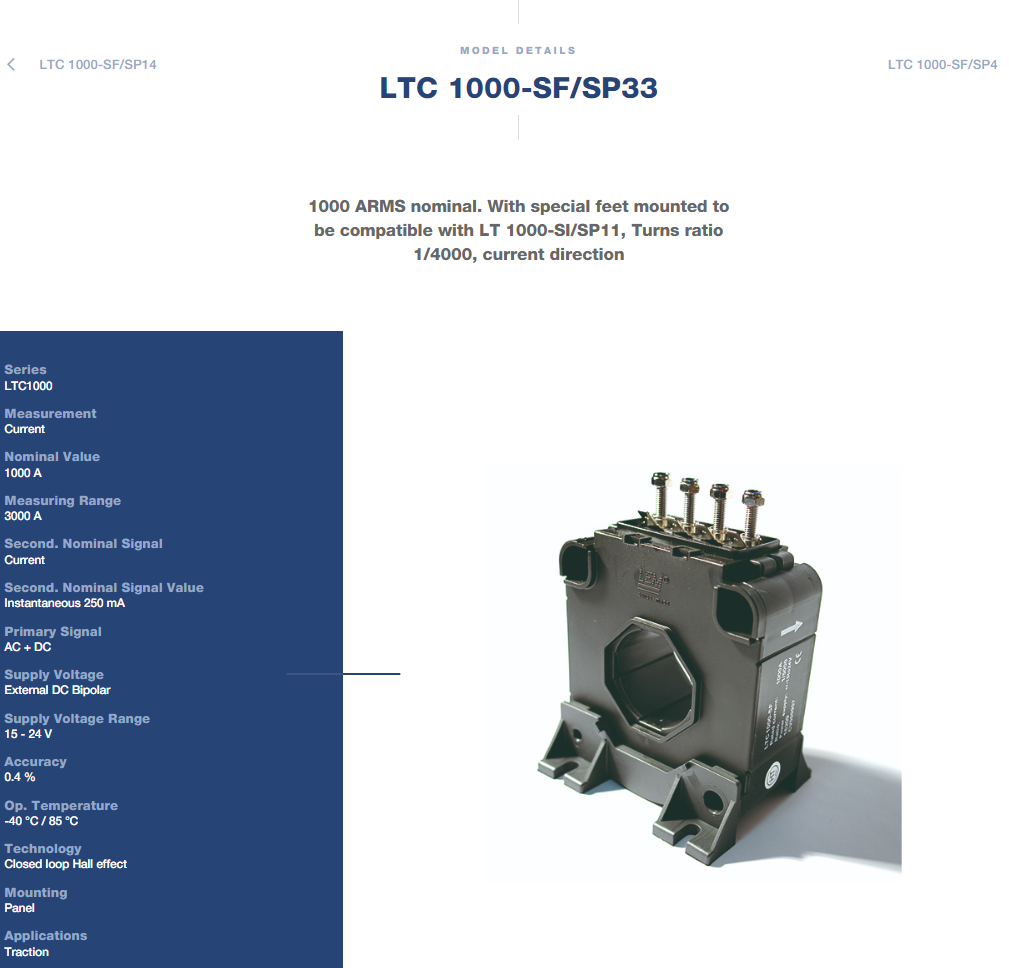

    LEM LTC 1000-SF/SP33 Closed-Loop Hall Effect Current Transducer



    LEM LTC 1000-SF/SP33 Product Overview

    The LTC 1000-SF/SP33 is a closed-loop Hall effect current transducer from LEM's LTC series, designed for electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. It is specifically optimized for traction applications including railway propulsion and braking choppers, traction converters, and auxiliary converters.

    This model features a 42 × 12 mm aperture for the primary conductor crossing. The SP33 variant is a special configuration with feet mounted to be compatible with LT 1000-SI/SP11, making it an ideal drop-in replacement for existing installations. The secondary connections support dual fastening modes: either 4×M5 threaded studs or 4×Faston (6.3×0.8mm) tabs.

    This model is rated for 1000A nominal current with a measuring range of ±3000A (3× overload capability), outputting a 250mA instantaneous current signal with 0.4% accuracy and 0.1% linearity. It operates on a ±15V to ±24V bipolar supply, with a DC~100kHz bandwidth and a <1µs response time. The sensor features a 13.4kV RMS insulation test voltage and operates over a temperature range of -40°C to +85°C, compliant with EN 50155:2017 railway standards.



    LEM LTC 1000-SF/SP33 Key Technical Specifications (10 items)

    Parameter

    Specification

    Nominal Current (IPN)

    1000 A

    Measuring Range (IPM)

    ±3000 A

    Output Signal (ISN)

    250 mA

    Technology

    Closed-loop Hall Effect

    Accuracy

    ±0.4 %

    Linearity

    < 0.1 %

    Supply Voltage (UC)

    ±15V to ±24V DC bipolar

    Frequency Bandwidth

    DC ~ 100 kHz

    Response Time

    < 1 µs

    Insulation Test Voltage (Ud)

    13.4 kV RMS / 1 minute

    Aperture

    42 × 12 mm

    Operating Temperature

    -40°C to +85°C



    LEM LTC 1000-SF/SP33 Core Advantages

    Closed-Loop Hall Technology: 0.4% accuracy and <0.1% linearity

    ±3000A Measuring Range: 3× overload capability for traction transients

    13.4kV Ultra-High Insulation: Superior safety in railway environments

    <1µs Fast Response + 100kHz Bandwidth: Captures IGBT switching transients

    Drop-in Compatibility with LT 1000-SI/SP11: SP33 variant with special feet for easy replacement

    Flexible Mounting: Horizontal or vertical mounting, feet can be mounted in 3 different ways

    Dual Secondary Connections: M5 studs or Faston 6.3×0.8mm tabs

    EN 50155:2017 Compliant: Certified for railway rolling stock equipment



    LEM LTC 1000-SF/SP33 Target Applications

    Railway Traction Systems: Traction converters, auxiliary converters

    Propulsion and Braking Choppers

    Single-phase or three-phase inverters

    Battery chargers

    AC Variable Speed Drives and Servo Motor Drives

    Industrial Automation and Power Supplies



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Gore
    May 06, 2026
    excellent
    Omari
    Dec 02, 2025
    The quality is excellent
    Orval
    Mar 17, 2025
    Great Supplier. No Problems.
    Tana
    Jan 02, 2025
    Elsa will work hard to get you best price and delivery available.. Look forward to working with her again!
    Valencia
    Dec 15, 2023
    Thank you! Awesome quality
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
