LXS 15-NPS , LXS15-NPS

HOT OFFER// Authorized Distributor
  • MacroQuest Part#LXS 15-NPS
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $10.11 - $15.48
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $15.48
    10-99 Pieces $13.39
    100-199 Pieces $11.15
    >=200 Pieces $10.11
    Quantity:
    In Stock
    $10.11
    (0 In Stock)
    Available
    $10.11
    LT: 6-8 weeks
    (2000 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

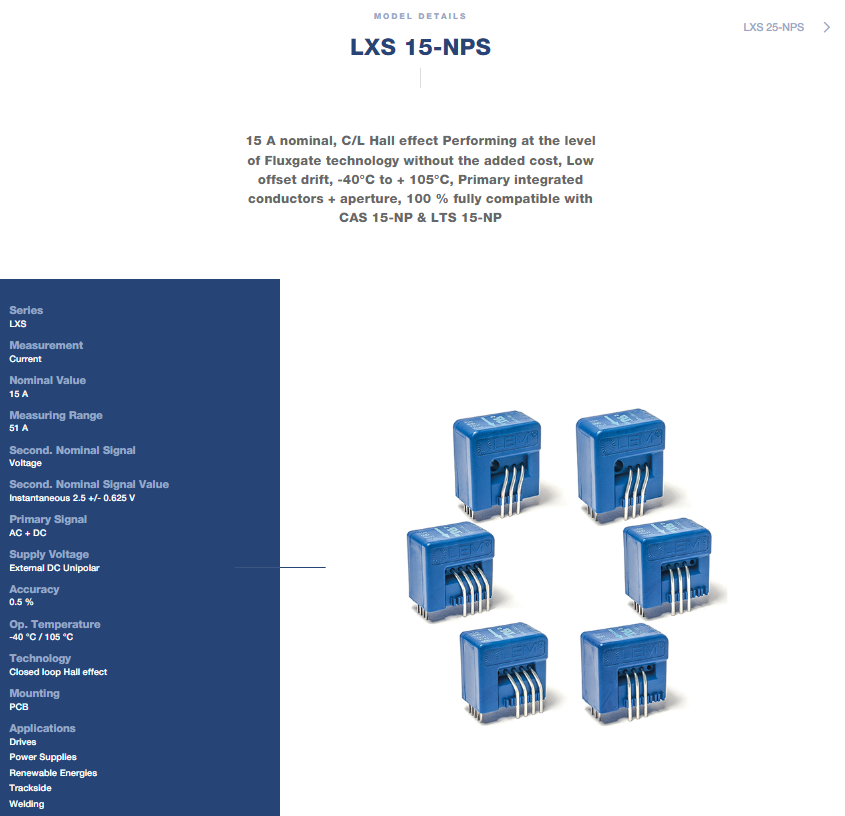

    LEM LXS 15-NPS LXS Series Closed Loop Current Transducer

    LEM LXS 15-NPS Product Overview

    The LXS 15-NPS is a closed-loop Hall effect current transducer from LEM's LXS Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This compact PCB-mount transducer features an aperture for primary conductor insertion and delivers performance approaching fluxgate technology at a cost-effective price point.

    Rated for 15 A nominal with a measuring range of ±51 A, it outputs a ratiometric voltage signal of 2.5 ± 0.625 V with 0.45% accuracy. Sensitivity is 41.67 mV/A, with ±0.1% linearity. Response time is 0.4 µs and frequency bandwidth is 300 kHz. Supply voltage range is 4.75 V to 5.25 V DC. Mass is approximately 10 g and operating temperature ranges from -40°C to +105°C. Insulation test voltage is 4.3 kV RMS. The device features very low offset drift and excellent dv/dt immunity.



    LEM LXS 15-NPS Key Specifications

    Parameter

    Value

    Rated current (IPN)

    15 A

    Measuring range (IPM)

    ±51 A

    Output signal

    Ratiometric, voltage (2.5 ± 0.625 V)

    Supply voltage (VC)

    4.75 V to 5.25 V DC

    Accuracy (X)

    0.45 %

    Linearity (EL)

    ±0.1 %

    Sensitivity

    41.67 mV/A

    Response time (tr)

    0.4 µs

    Bandwidth (BW)

    300 kHz

    Turns ratio

    15:1

    Insulation (Vd)

    4.3 kV RMS / 50 Hz / 1 min

    Operating temp (TA)

    -40°C to +105°C

    Mass (m)

    10 g

    Mounting

    PCB through-hole



    LEM LXS 15-NPS Key Advantages

    The LXS 15-NPS employs closed-loop Hall effect technology with ASIC signal conditioning, delivering 0.45% accuracy and ±0.1% linearity while providing galvanic isolation between primary and secondary circuits. The very low offset drift ensures stable performance across the wide -40°C to +105°C temperature range, outperforming traditional Hall effect sensors. The ±51 A measuring range provides ample headroom for overload conditions. The single +5 V supply simplifies system integration. The compact PCB-mount design (mass only 10 g) and LTS footprint compatibility enable efficient space utilization in power electronics. Excellent dv/dt immunity and 0.4 µs fast response ensure robust performance in noisy environments.



    LEM LXS 15-NPS Typical Applications

    AC variable speed and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Solar inverters
    Industrial automation and control systems



    Why Choose the LEM LXS 15-NPS?

    The LXS 15-NPS combines a 15 A rated current with ±51 A measuring range and ratiometric voltage output in a compact PCB-mount package. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial and renewable energy applications. The closed-loop Hall effect design provides accuracy approaching fluxgate technology without the associated cost, while the compact design and fast response time make it an ideal choice for space-constrained power electronics designs.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Omarion
    Jan 09, 2026
    This parts is worth recommending and very good.
    Eliana
    Jul 31, 2025
    Great company, reliable and professional, easy to do business.
    Witt
    Apr 18, 2025
    Honest Supplier,Good,
    Frederic
    Nov 30, 2024
    Packaging is great
    Quinton
    Nov 30, 2023
    Very professional!
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
