LZSR 150-P , LZSR150-P

HOT OFFER// Authorized Distributor
  • MacroQuest Part#LZSR 150-P
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $27.36 - $44.11
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $44.11
    10-99 Pieces $36.18
    >=100 Pieces $27.36
    Quantity:
    In Stock
    $27.36
    (0 In Stock)
    Available
    $27.36
    LT: 6-8 weeks
    (7569 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

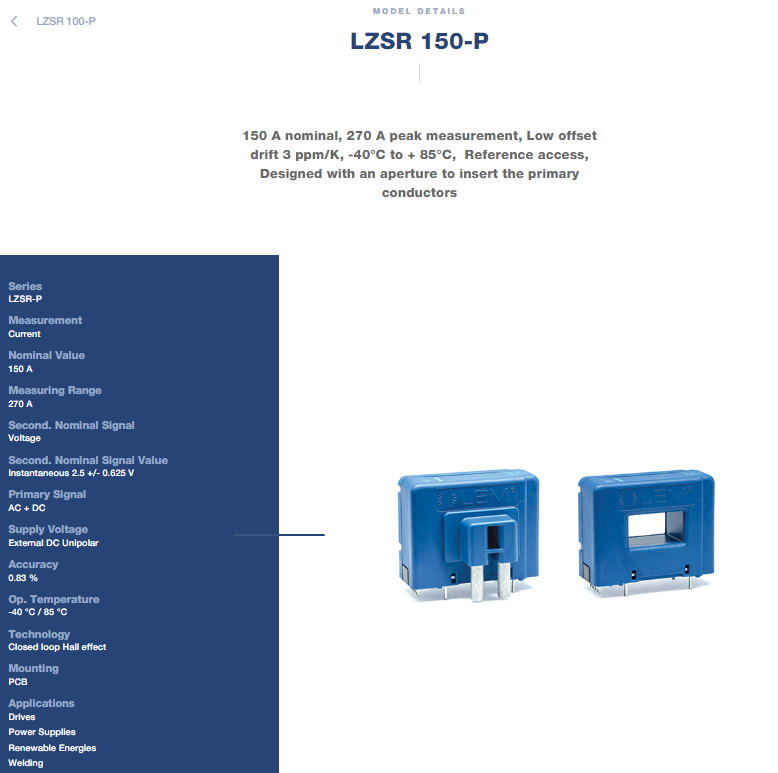

    LEM LZSR 150-P LZSR Series Closed Loop Current Transducer

    LEM LZSR 150-P Product Overview

    The LZSR 150-P is a closed-loop Hall effect current transducer from LEM's LZSR Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This PCB-mount transducer features an aperture for inserting primary conductors and is particularly adapted for 70-120kW solar inverters .

    Rated for 150 A nominal with a peak measuring range of 270 A (up to 3 times the nominal value) , it outputs an instantaneous voltage signal of 2.5 ± 0.625 V with 0.83% accuracy and ±0.1% linearity . Response time is typically 3 µs and bandwidth is DC to 200 kHz . Supply voltage is +5 V DC (4.75 V to 5.25 V) . Sensitivity is 4.166 mV/A . Operating temperature ranges from -40°C to +85°C . The transducer features very low offset drift down to 3 ppm/K, significantly improved over previous generation Hall effect sensors .



    LEM LZSR 150-P Key Specifications

    Parameter

    Value

    Rated current (IPN)

    150 A

    Measuring range (IPM)

    ±270 A (peak)

    Output signal

    Instantaneous voltage

    Output voltage value

    2.5 ± 0.625 V

    Supply voltage (VC)

    +5 V DC (4.75 to 5.25 V)

    Accuracy (X)

    0.83 %

    Linearity (EL)

    ±0.1 %

    Sensitivity

    4.166 mV/A

    Response time (tr)

    3 µs (typical)

    Bandwidth (BW)

    DC to 200 kHz

    Offset drift

    3 ppm/K

    Operating temp (TA)

    -40°C to +85°C

    Mounting

    PCB (through-hole)

    Package dimensions

    37.75 × 48.2 × 19.4 mm



    LEM LZSR 150-P Key Advantages

    The LZSR 150-P employs closed-loop Hall effect technology with ASIC signal conditioning, delivering 0.83% accuracy and ±0.1% linearity while providing galvanic isolation between primary and secondary circuits . The very low offset drift of 3 ppm/K ensures stable performance across a wide temperature range, outperforming traditional Hall effect sensors by up to 7 times . The 270 A peak measuring range accommodates high overload conditions up to three times the nominal value . The +5 V single supply simplifies system integration, while the internal reference voltage (VREF pin) and overcurrent detection output (threshold set at 1.93 × IPN) provide added functionality for protection applications . The compact PCB-mount design with aperture (37.75 × 48.2 × 19.4 mm) enables efficient space utilization in power electronics .



    LEM LZSR 150-P Typical Applications

    Solar inverters (70-120 kW)
    AC variable speed and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Combiner box and MPPT systems



    Why Choose the LEM LZSR 150-P?

    The LZSR 150-P combines a 150 A rated current with 270 A peak measuring range and voltage output in a compact PCB-mount package with aperture for primary conductors. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for solar inverter and industrial applications. The closed-loop Hall effect design with ASIC provides exceptional accuracy and very low offset drift, while the overcurrent detection output and reference access add valuable system-level functionality. The single +5 V supply and PCB mounting make it an ideal choice for high-density power electronics designs .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Gilda
    Mar 24, 2026
    Good one
    Zena
    Aug 01, 2025
    I strongly recommend this supplier.
    Adams
    Jul 04, 2025
    Top Notch
    Nicolle
    Jun 17, 2025
    The delivery speed is very fast, the packaging is very careful and tight
    Maud
    Oct 05, 2024
    Quality product
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
