PCM 10-P/SP1 , PCM10-P/SP1

HOT OFFER// Authorized Distributor
  • MacroQuest Part#PCM 10-P/SP1
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $282.00 - $396.50
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $396.50
    10-19 Pieces $328.30
    20-49 Pieces $314.42
    50-99 Pieces $298.95
    >=100 Pieces $282.00
    Quantity:
    In Stock
    $282.00
    0
    (0 In Stock)
    Available
    $282.00
    LT：8-12 weeks
    (200 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

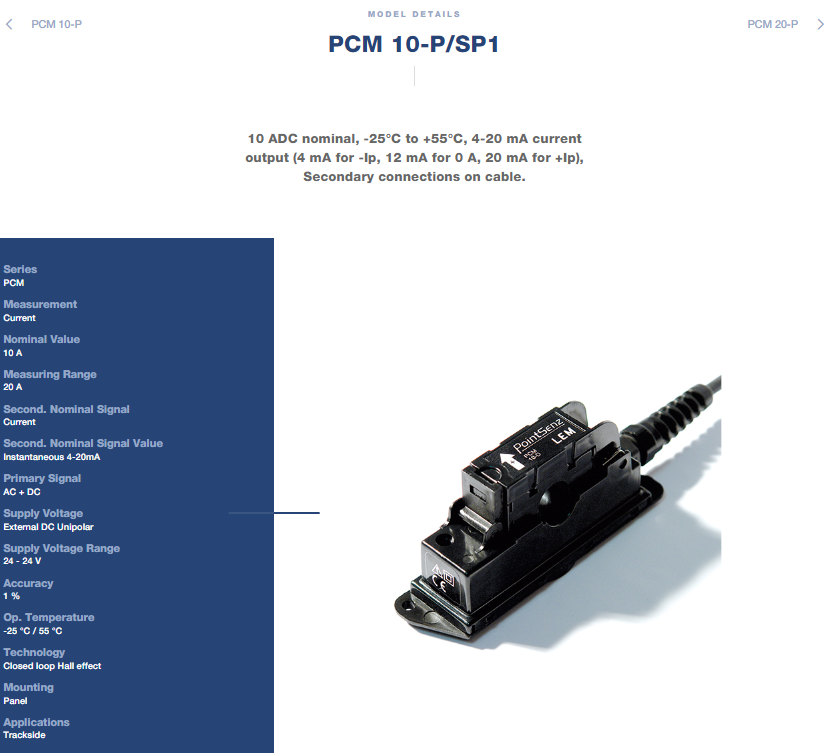

    LEM PCM 10-P/SP1 PCM Series Closed Loop Current Transducer

    LEM PCM 10-P/SP1 Product Overview

    The PCM 10-P/SP1 is a closed-loop Hall effect current transducer from LEM's PointSenz PCM Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This split-core transducer features secondary connections on a cable and is specifically engineered for monitoring points in trackside railway applications .

    Rated for 10 A nominal with a measuring range of ±20 A, it outputs a 4-20 mA current signal (4 mA for -Ip, 12 mA for 0 A, 20 mA for +Ip) with ±1% accuracy and ±0.2% linearity . Response time is 10 µs and bandwidth is DC to 1 kHz . Supply voltage is +24 V DC with reverse polarity protection . Mass is 155 g and operating temperature ranges from -40°C to +85°C . Insulation test voltage is 50 V RMS with 12 mm creepage and 10 mm clearance. The 15.6 mm aperture accommodates the primary conductor, and secondary connections are made via 3 m screened polyurethane cable . The device features an insulating plastic case recognized according to UL 94-V0 and is water-resistant rated to IP67.



    LEM PCM 10-P/SP1 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    10 A

    Measuring range (IPM)

    ±20 A

    Output signal

    4-20 mA current

    Supply voltage (VC)

    +24 V DC (±10%)

    Accuracy (X)

    ±1.0 %

    Linearity (EL)

    ±0.2 %

    Response time (tr)

    10 µs

    Bandwidth (BW)

    DC to 1 kHz

    Insulation (Vd)

    50 V RMS

    Creepage/Clearance (dcp/dcl)

    12/10 mm

    Aperture

    15.6 mm

    Operating temp (TA)

    -40°C to +85°C

    Mass (m)

    155 g

    Mounting

    Panel mounting

    Protection rating

    IP67

    Secondary connection

    3 m screened polyurethane cable



    LEM PCM 10-P/SP1 Key Advantages

    The PCM 10-P/SP1 employs closed-loop Hall effect technology, delivering ±1% accuracy and ±0.2% linearity while providing galvanic isolation between primary and secondary circuits . The split core design enables easy installation and maintenance without disconnecting existing conductors, making it ideal for retrofit installations . The 4-20 mA output provides seamless integration with monitoring systems and PLCs. The IP67 water-resistant design and UL 94-V0 rated insulating plastic case ensure reliable performance in harsh trackside environments . The reverse polarity protection enhances system safety and durability, and the cable output simplifies wiring in space-constrained railway installations .



    LEM PCM 10-P/SP1 Typical Applications

    Points condition monitoring for railway trackside applications
    Signal light indication
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Railway infrastructure monitoring
    Electrically driven points machine monitoring
    Trackside equipment protection and fault detection
    Retrofit installations without service interruption



    Why Choose the LEM PCM 10-P/SP1?

    The PCM 10-P/SP1 combines a 10 A rated current with ±20 A measuring range and 4-20 mA output in a compact, IP67-rated split-core package with 3 m cable output. Manufactured by LEM, it delivers stable, accurate, and safe current measurement specifically for railway trackside applications. The closed-loop Hall effect design provides excellent accuracy and linearity, while the IP67 water-resistant enclosure ensures reliable operation in demanding outdoor environments. The split-core design and cable output offer easy installation without system interruption, making it an ideal choice for railway infrastructure monitoring and protection applications .
