RA 1005-S , RA1005-S

Second. Nominal Signal[Instantaneous:Voltage V]
  • MacroQuest Part#RA 1005-S
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $1213.48 - $1456.18
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $1456.18
    10-99 Pieces $1334.83
    >=100 Pieces $1213.48
    Contact us for quotation:
    quantity
    $0.00
    (0 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

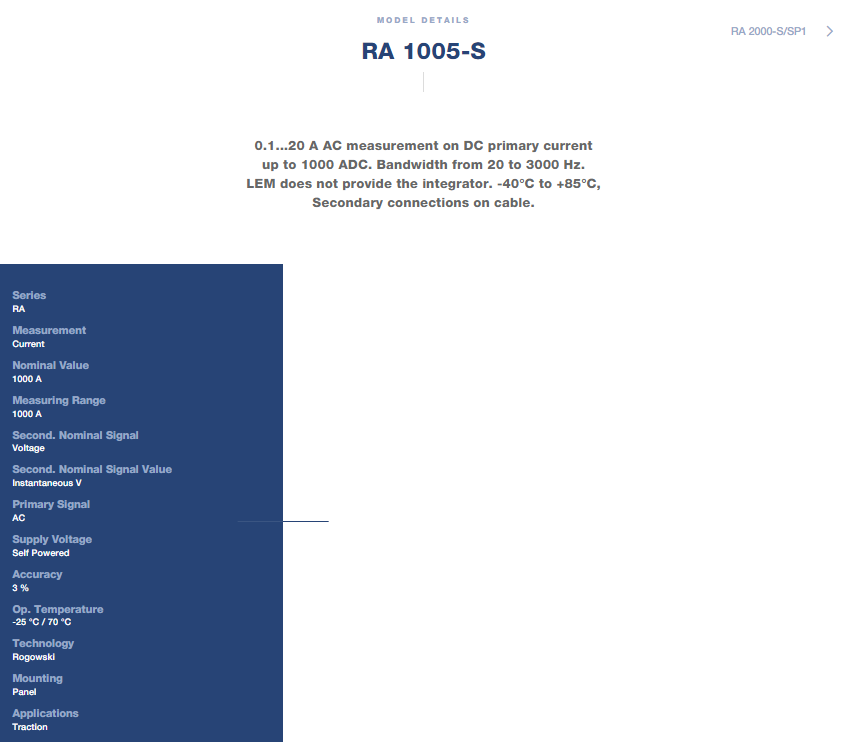

    LEM RA 1005-S RA Series Rogowski Coil Current Transducer

    LEM RA 1005-S Product Overview

    The RA 1005-S is a Rogowski coil current transducer from LEM's RA Series, designed for the electronic measurement of alternating signals (0.1 to 20 A AC) superimposed on DC primary currents up to 1000 A DC, with galvanic isolation between the primary and secondary circuits . This panel-mount transducer is specifically designed for interference frequency detection in railway applications .

    Rated for 1000 A nominal, it outputs an instantaneous voltage signal with 3% accuracy over a bandwidth of 20 to 3000 Hz . The transducer is self-powered and requires an external integrator . Supply is self-powered and operating temperature ranges from -40°C to +85°C . Insulation test voltage is 12 kV RMS at 50 Hz for 1 minute, with 82.70 mm creepage and 69.60 mm clearance . The 42 mm diameter aperture accommodates the primary conductor .



    LEM RA 1005-S Key Specifications

    Parameter

    Value

    Rated current (IPN)

    1000 A

    Measuring range

    1000 A

    AC measurement range

    0.1 to 20 A (on DC primary current up to 1000 A DC)

    Output signal

    Instantaneous voltage

    Output voltage relationship

    U_out = M · dI_p/dt (M = 3.98 · 10⁻⁶ H)

    Supply voltage (VC)

    Self-powered

    Accuracy (ε)

    < ±3 % (0.1 to 20 A AC)

    Bandwidth (BW)

    20 to 3000 Hz

    Phase error (φU_out) @ 20-100 Hz

    -90° ±5°

    Phase error (φU_out) @ 100-3000 Hz

    -90° ±2.5°

    Thermal drift of mutual inductance (ΔMf/M)

    < ±0.3 % (-40°C to +85°C)

    Insulation (Vd)

    12 kV RMS / 50 Hz / 1 min (primary to secondary)

    Creepage/Clearance (dCp/dCl)

    82.70 / 69.60 mm

    Aperture

    42 mm diameter

    Operating temp (TA)

    -40°C to +85°C

    Mass (m)

    760 g

    Mounting

    Panel (4 holes Ø 5.5 mm, M5 screws)

    Secondary connection

    Shielded cable, 4 x 0.5 mm²



    LEM RA 1005-S Key Advantages

    The RA 1005-S employs Rogowski coil technology, delivering 3% accuracy for AC interference detection while providing galvanic isolation between primary and secondary circuits . The 42 mm aperture enables non-intrusive installation of primary conductors without disconnecting existing cables. The 12 kV RMS insulation with 82.70 mm creepage ensures safe operation in high-voltage railway environments . The self-powered operation simplifies installation. The insulated plastic case is recognized according to UL 94-V0, and the design offers no insertion losses and current overload capability . The shielded cable output provides immunity to external interference.



    LEM RA 1005-S Typical Applications

    Interference frequency detection on DC primary currents
    Single or three phase inverters for railway traction
    Propulsion and braking choppers
    Propulsion converters
    Auxiliary converters
    Battery chargers
    Railway fixed installations
    Railway onboard equipment



    Why Choose the LEM RA 1005-S?

    The RA 1005-S combines a 1000 A rated current with 3% accuracy in a robust panel-mount Rogowski coil package for AC interference detection on DC primary currents. Manufactured by LEM, it delivers stable and safe AC current measurement specifically for railway traction applications. The Rogowski coil technology offers excellent linearity and dynamic range, while the 42 mm aperture allows easy installation without system interruption. The self-powered operation and compliance with EN 50155:2007 and EN 50121-3-2:2015 railway standards ensure reliable operation in demanding rail environments .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Pallavi
    Mar 11, 2026
    Thank you! Awesome quality
    Byron
    Feb 25, 2026
    Elsa is easy and nice to work with.Three times cooperations,never have problem.
    Waldron
    Aug 15, 2025
    We will have a long-term business relationship
    Nicolle
    Apr 14, 2025
    Quality product
    Whitmore
    Jul 08, 2024
    Everything is very professional. hope can do more in the future.
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
