TT 50-SD , TT50-SD

HOT OFFER// Authorized Distributor
  • MacroQuest Part#TT 50-SD
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $30.30 - $46.98
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $46.98
    10-19 Pieces $39.62
    20-49 Pieces $36.46
    50-99 Pieces $33.88
    >=100 Pieces $30.30
    Quantity:
    In Stock
    $30.30
    (0 In Stock)
    Available
    $30.30
    LT: 8-12 weeks
    (2560 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

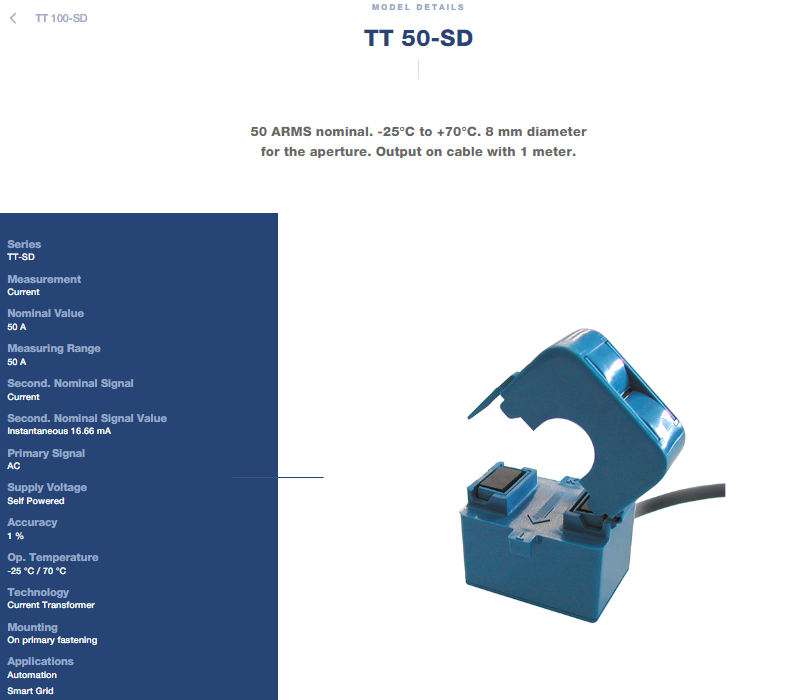

    LEM TT 50-SD TT-SD Series Split Core Current Transformer

    LEM TT 50-SD Product Overview

    The TT 50-SD is a split-core AC current transformer from LEM's TT-SD Series, designed for the electronic measurement of AC waveform currents with galvanic isolation between the primary circuit and the secondary circuit . This self-powered transducer features an 8 mm aperture and a 1 m cable output for non-contact measurement .

    Rated for 50 A nominal, it outputs a secondary current of 16.66 mA at nominal with ±1% total accuracy and 0.1% linearity error . Output clamping voltage is 7.5 V. Frequency bandwidth is 50/60 Hz with a phase shift of 1.5° ± 1° . The transducer is self-powered with an overload capability of 100 A continuous and 1200 A for 1 minute . Mass is 80 g and operating temperature ranges from -25°C to +70°C . Insulation test voltage is 3.5 kV RMS at 50 Hz for 1 minute, with 6 mm creepage and clearance, and 300 V rated isolation voltage . The case is recognized according to UL 94-V0 .



    LEM TT 50-SD Key Specifications

    Parameter

    Value

    Rated current (IPN)

    50 A

    Measuring range

    50 A

    Output signal (IOUT)

    16.66 mA

    Output clamping voltage (VSZ)

    7.5 V

    Accuracy (εtot) @ IPN, 25°C

    < ±1 %

    Linearity error (εL)

    0.1 %

    Phase shift (Δφ)

    1.5° ± 1°

    Bandwidth (BW)

    50/60 Hz

    Overload capability - continuous / 1 min

    100 A / 1200 A

    Insulation test voltage (Vd)

    3.5 kV RMS / 50 Hz / 1 min

    Rated isolation voltage (Vb)

    300 V

    Creepage/Clearance (dCp/dCl)

    6 / 6 mm

    Aperture

    8 mm

    Operating temp (TA)

    -25°C to +70°C

    Mass (m)

    80 g

    Mounting

    Cable tie

    Protection degree

    IP40



    LEM TT 50-SD Key Advantages

    The TT 50-SD employs current transformer technology, delivering ±1% accuracy and 0.1% linearity while providing galvanic isolation between primary and secondary circuits . The split-core type with 8 mm sensing aperture enables fast, non-intrusive installation without disconnecting existing cables . The self-powered design simplifies installation and eliminates the need for an external supply. The 1 m cable output provides flexible wiring options . The compact case and cost-effective solution make it ideal for high-volume applications, while the high insulation between primary and secondary circuits ensures safe operation . The UL 94-V0 recognized insulating plastic case ensures safety compliance .



    LEM TT 50-SD Typical Applications

    Power meters: current measurement for active power calculation
    Energy sub-meters: for energy efficiency monitoring, consumption analysis and costs allocation
    Power quality monitoring
    Condition monitoring: motor loads such as conveyors, pumps or HVAC
    Distributed measurement systems
    Energy and automation systems
    Building automation and energy management
    Panel meters for power consumption display



    Why Choose the LEM TT 50-SD?

    The TT 50-SD combines a 50 A rated current with ±1% accuracy and 16.66 mA output in a compact, cost-effective split-core package . Manufactured by LEM, it delivers stable, accurate, and safe AC current measurement for energy and automation applications . The split-core design offers easy installation without system interruption, while the self-powered operation simplifies integration. The compact case and high accuracy make it an ideal choice for power metering, energy monitoring, and distributed measurement systems .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Freestone
    Apr 12, 2026
    Thank you Elsa for everything that you've done, very perfect and smoothly. I like the way that we cooperate with each other. Especially the shippment arranged very fast. Good Job!
    Roz
    Feb 21, 2026
    Good quality. Fast shipping.
    Ivan
    Nov 15, 2025
    Good supplier, met my target price, quick ship
    Hanson
    May 26, 2025
    We have bought many times from Macroquest and every time it has ran smotth.
    William
    Feb 13, 2024
    Great company and responsible person,can be trust!look forward to doing more business with you.
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
